55m x 18m Deck Cargo Barge

PMG180 Steel Loading/Deck Cargo Barge - 902 GRT

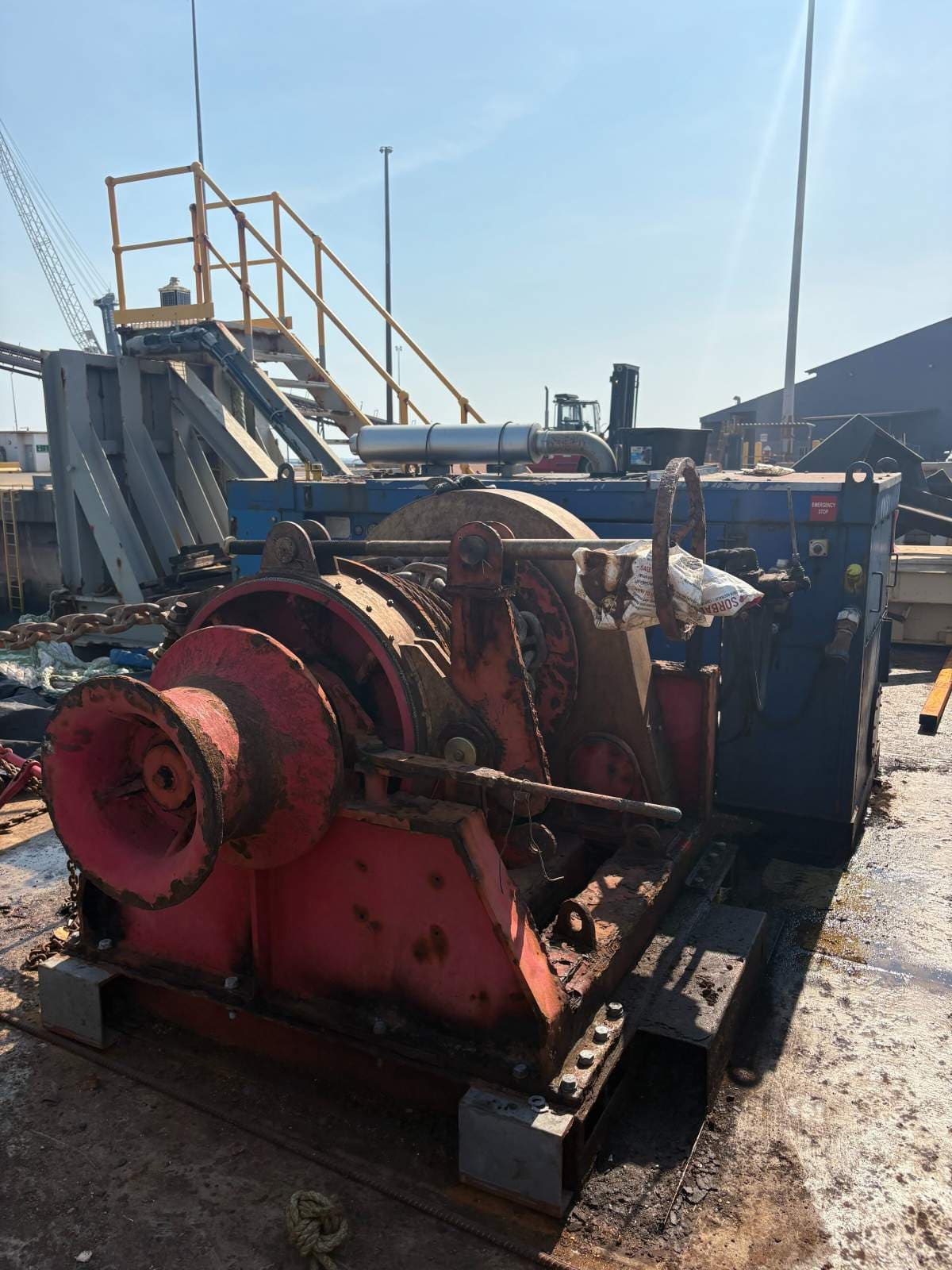

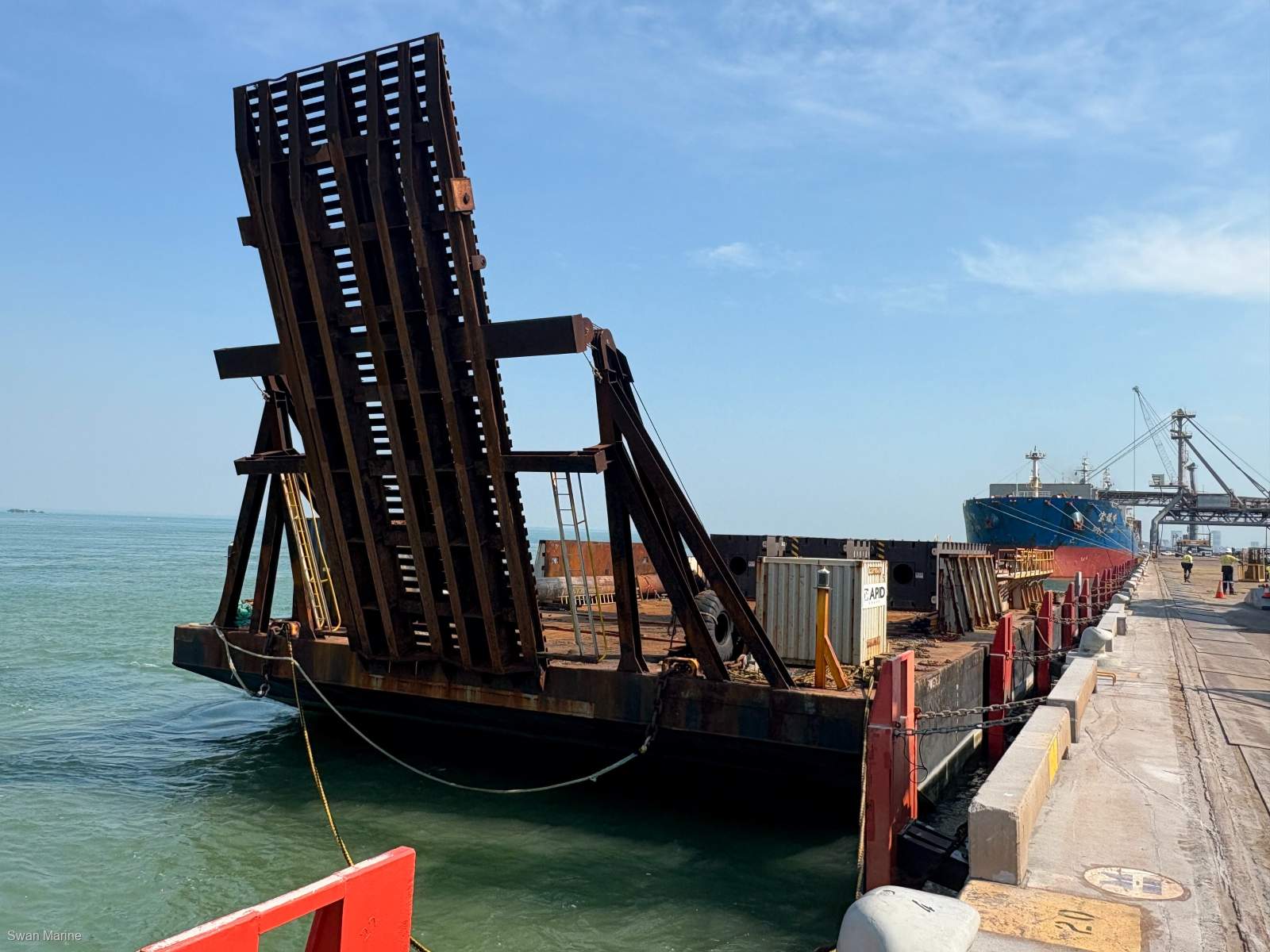

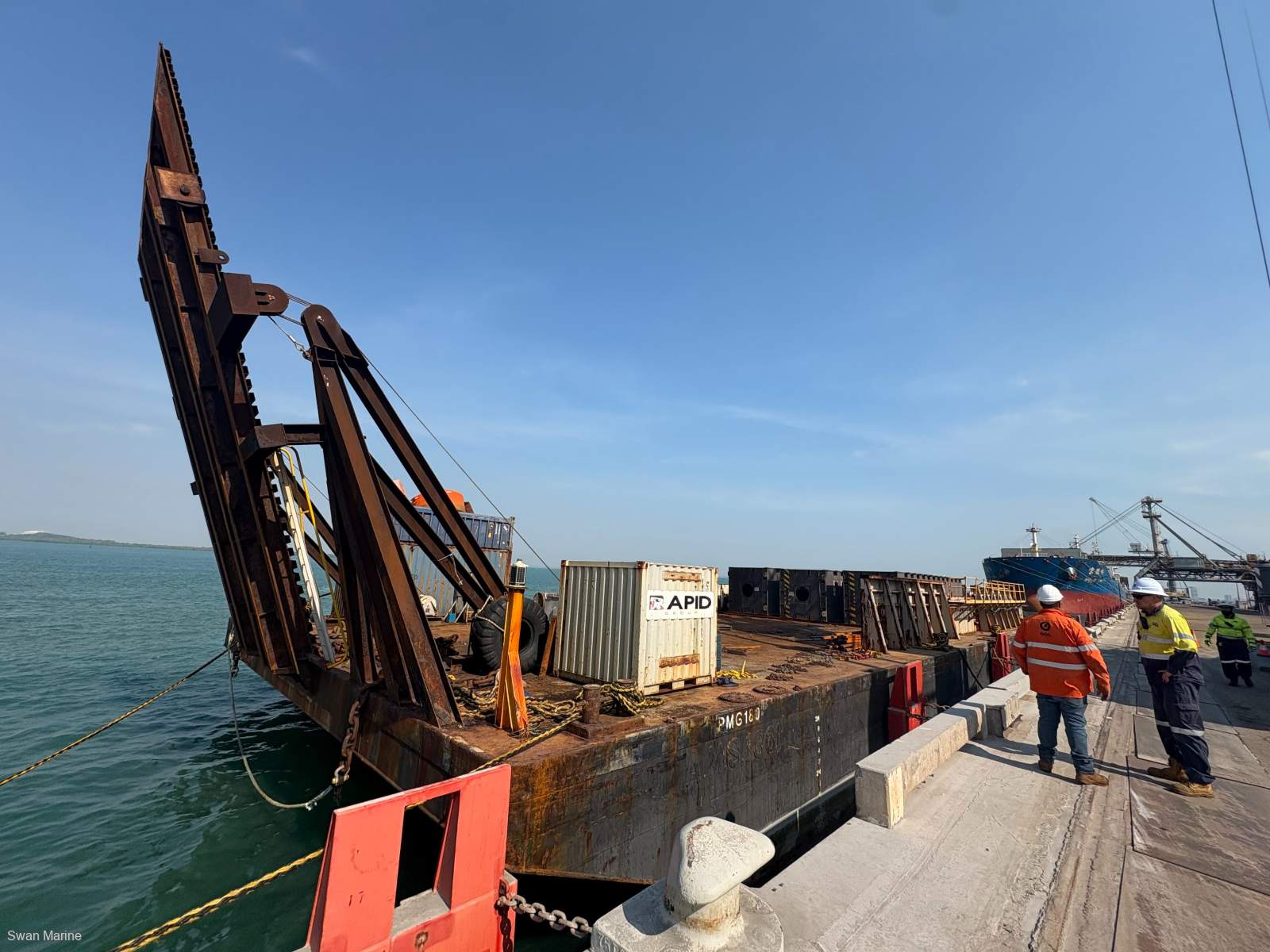

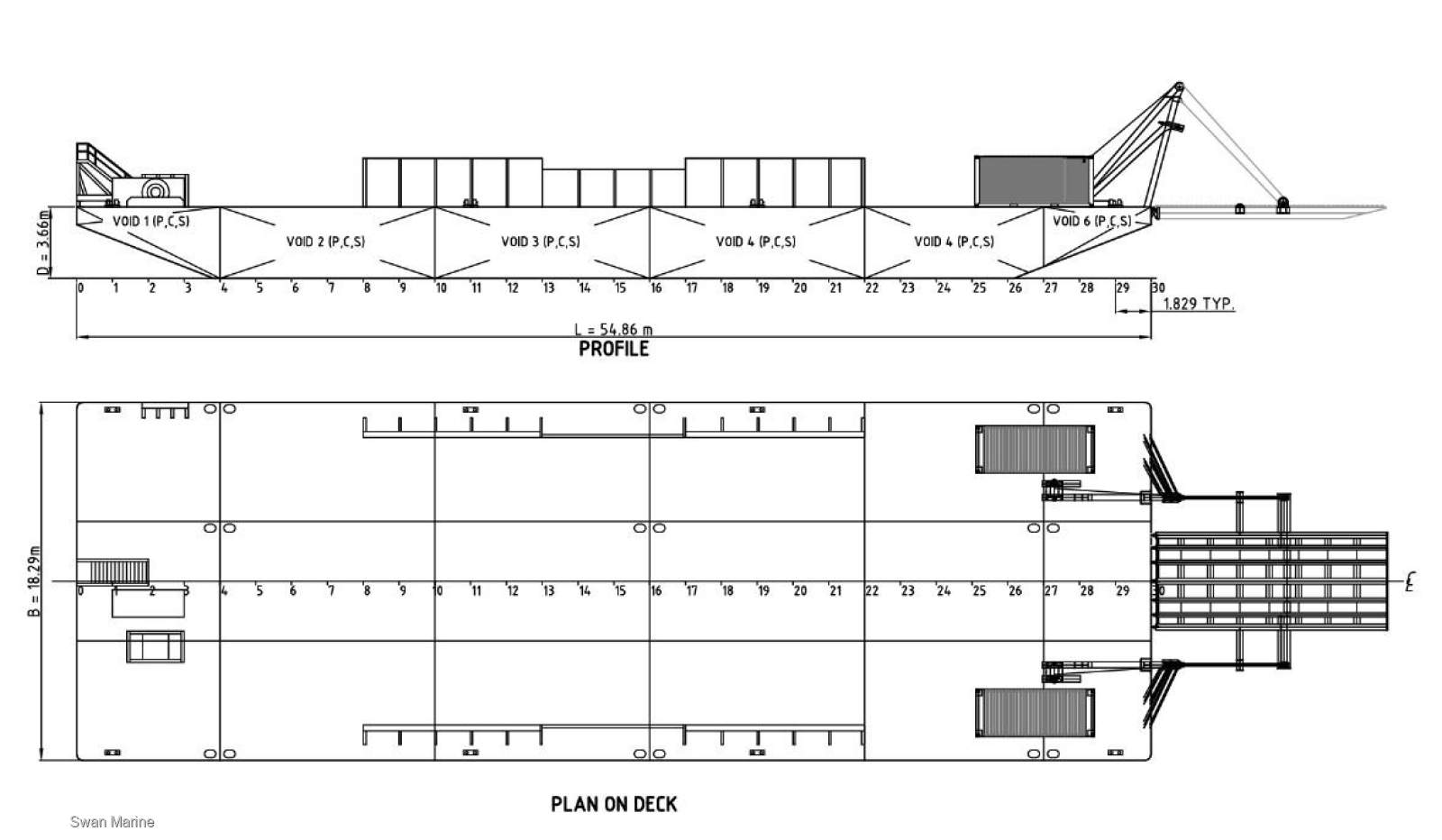

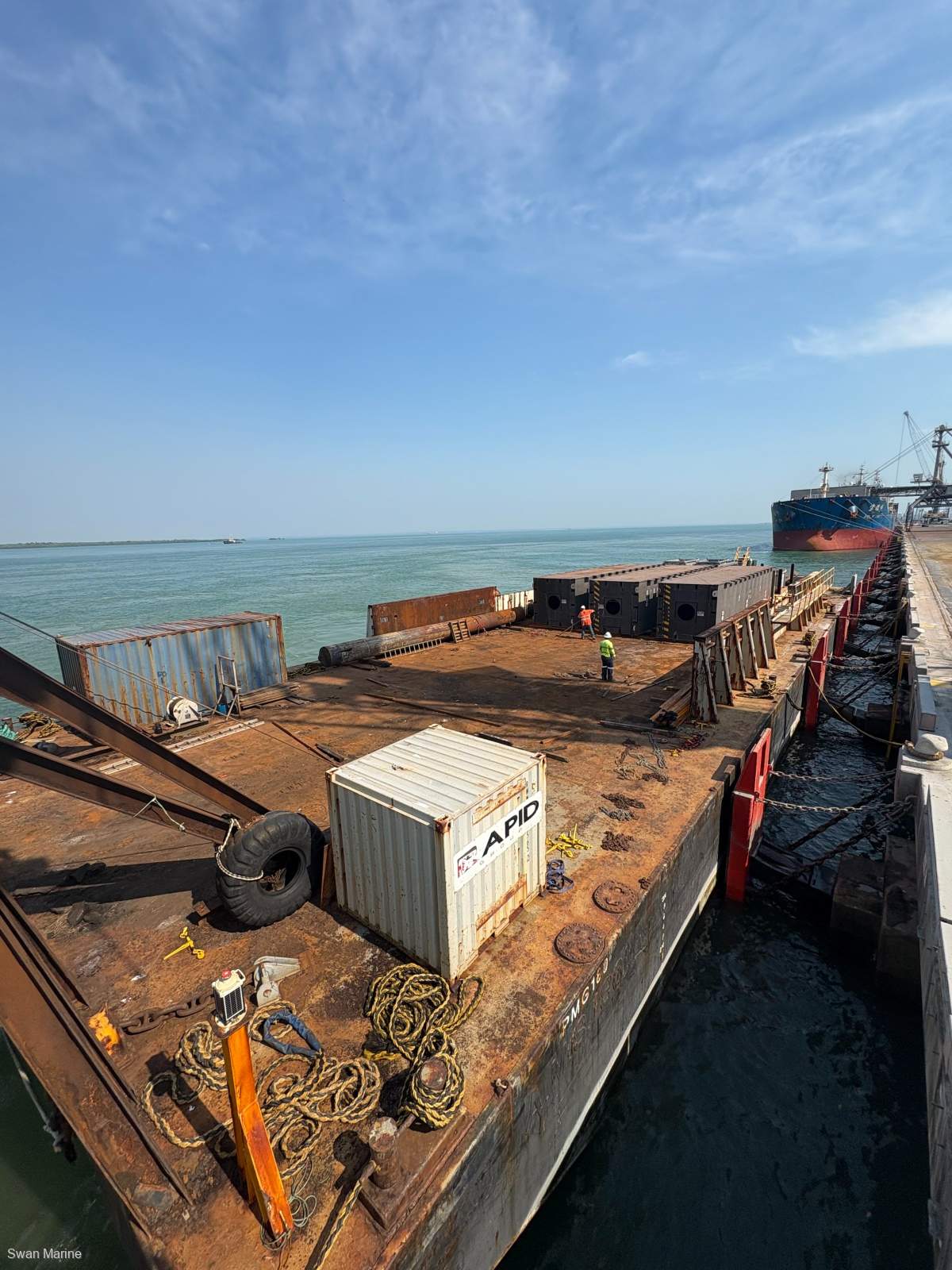

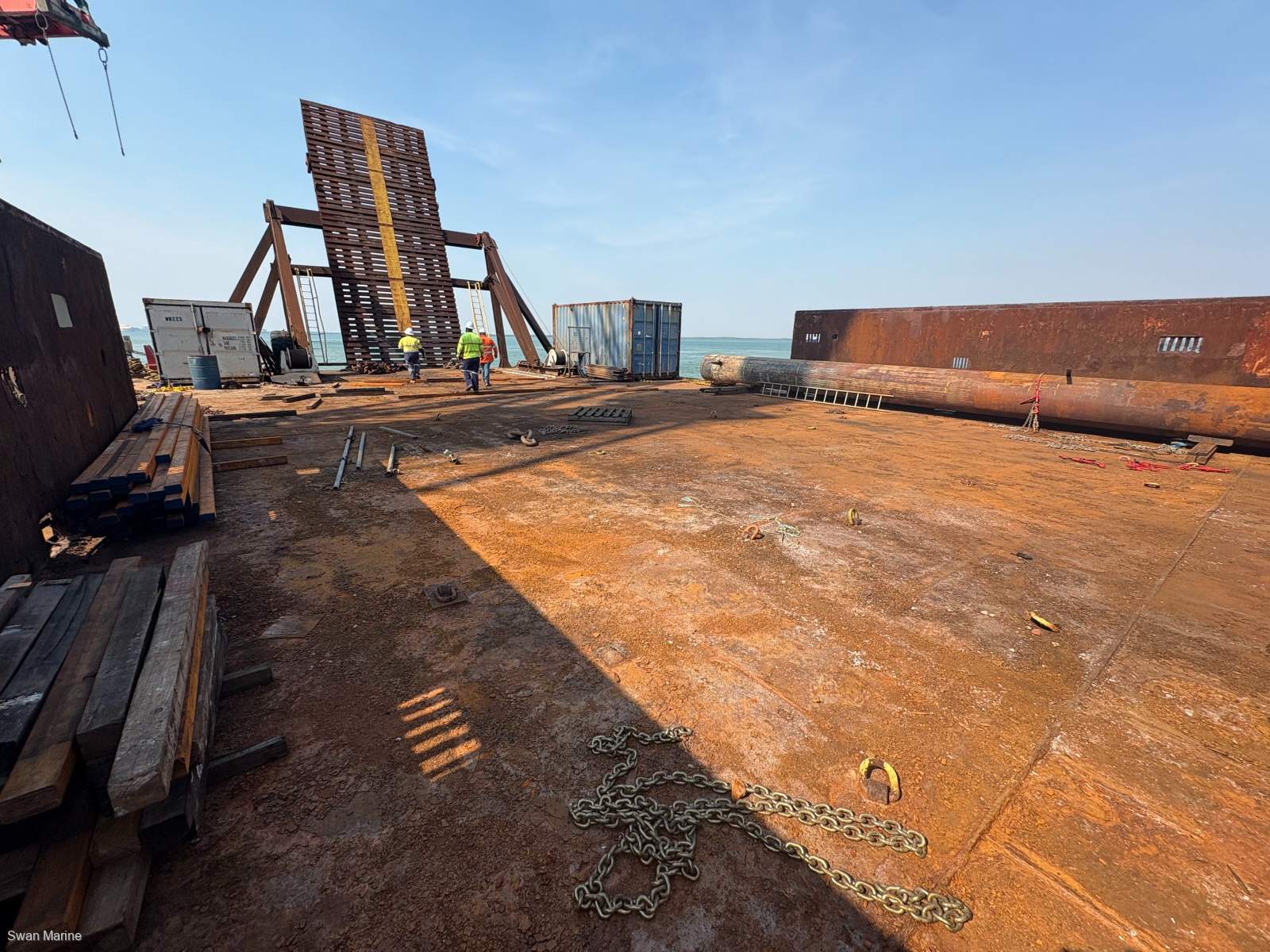

A 54.86m x 18.29m steel flat-top barge, built 2011, currently located in Cairns, QLD. PMG180 is fitted with a winch-operated hinged bow door (5m wide x 10m high, 70T door capacity) and a hydraulically operated stern anchor winch, making it well suited to shoreside loading and various offshore support operations

Key Specifications:

Length: 54.86m | Beam: 18.29m | Depth (moulded): 3.66m

Draft: 0.75m (min) - 2.93m (max)

GRT: 902T | NRT: 271T

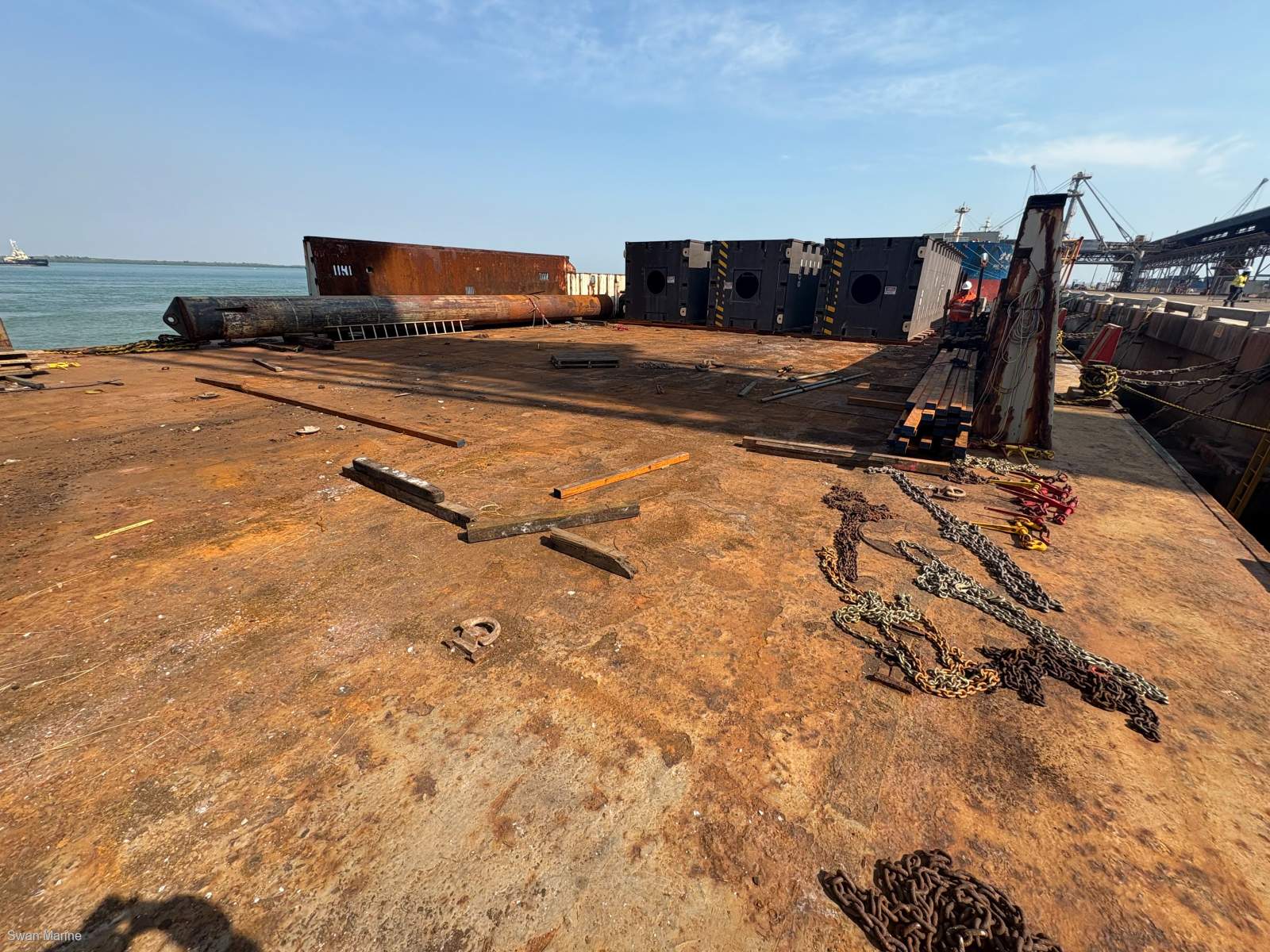

Deck capacity: 15T/m²

Hull material: Steel

Built in 2011 in China

Class: Lloyds / DCV, AMSA Survey 2B (4 crew + 8 personnel)

Certificate of Survey current, valid to 23 March 2027

Indicative Asking Price: $900,000 AUD. Detailed condition report available on request and all reasonable offers will be presented.

PMG180 is an in-survey barge offering strong deck capacity and door clearance for its class, representing good value for a buyer prepared to bring it up to their required standard and renew the survey in March 2027.

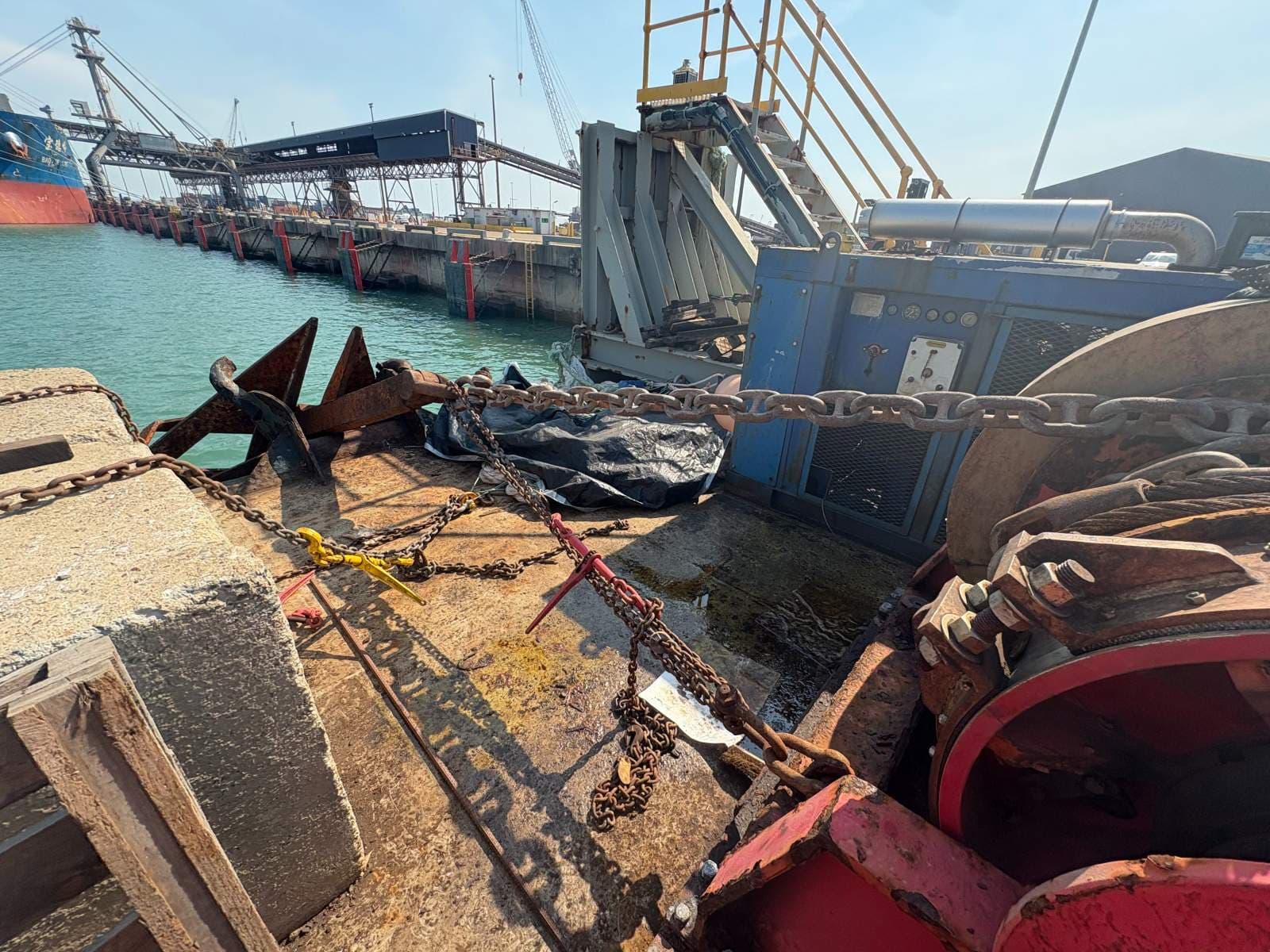

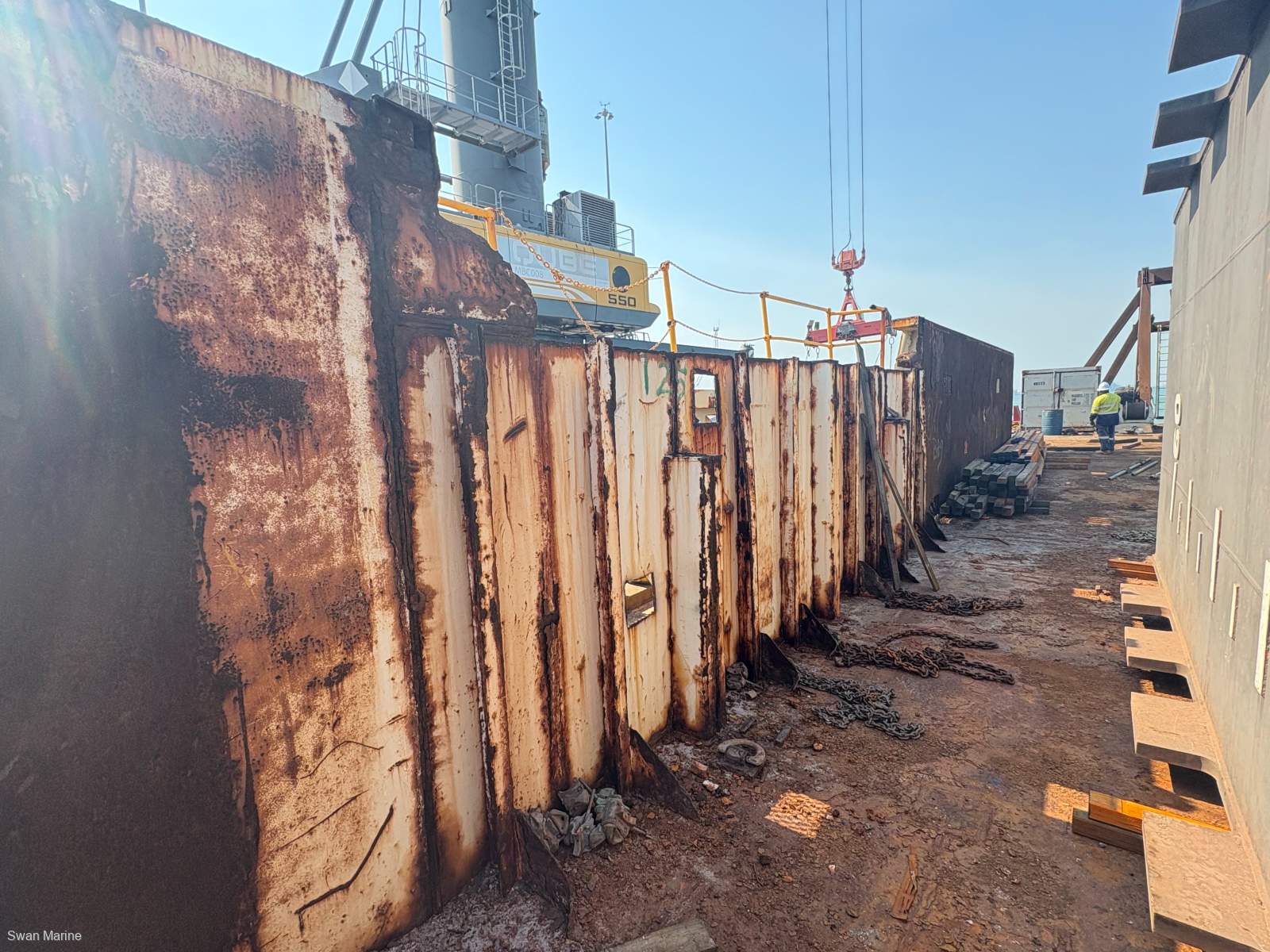

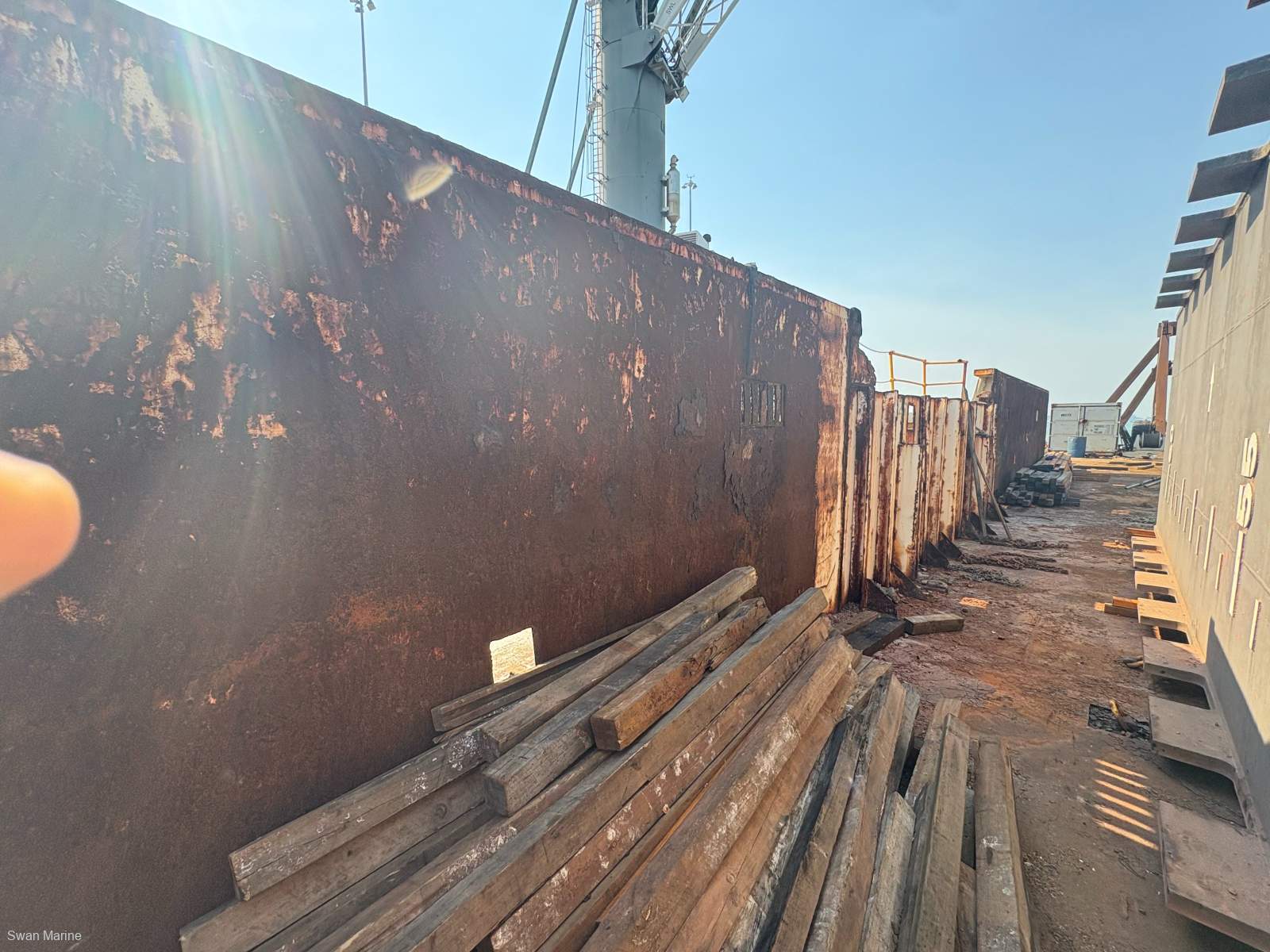

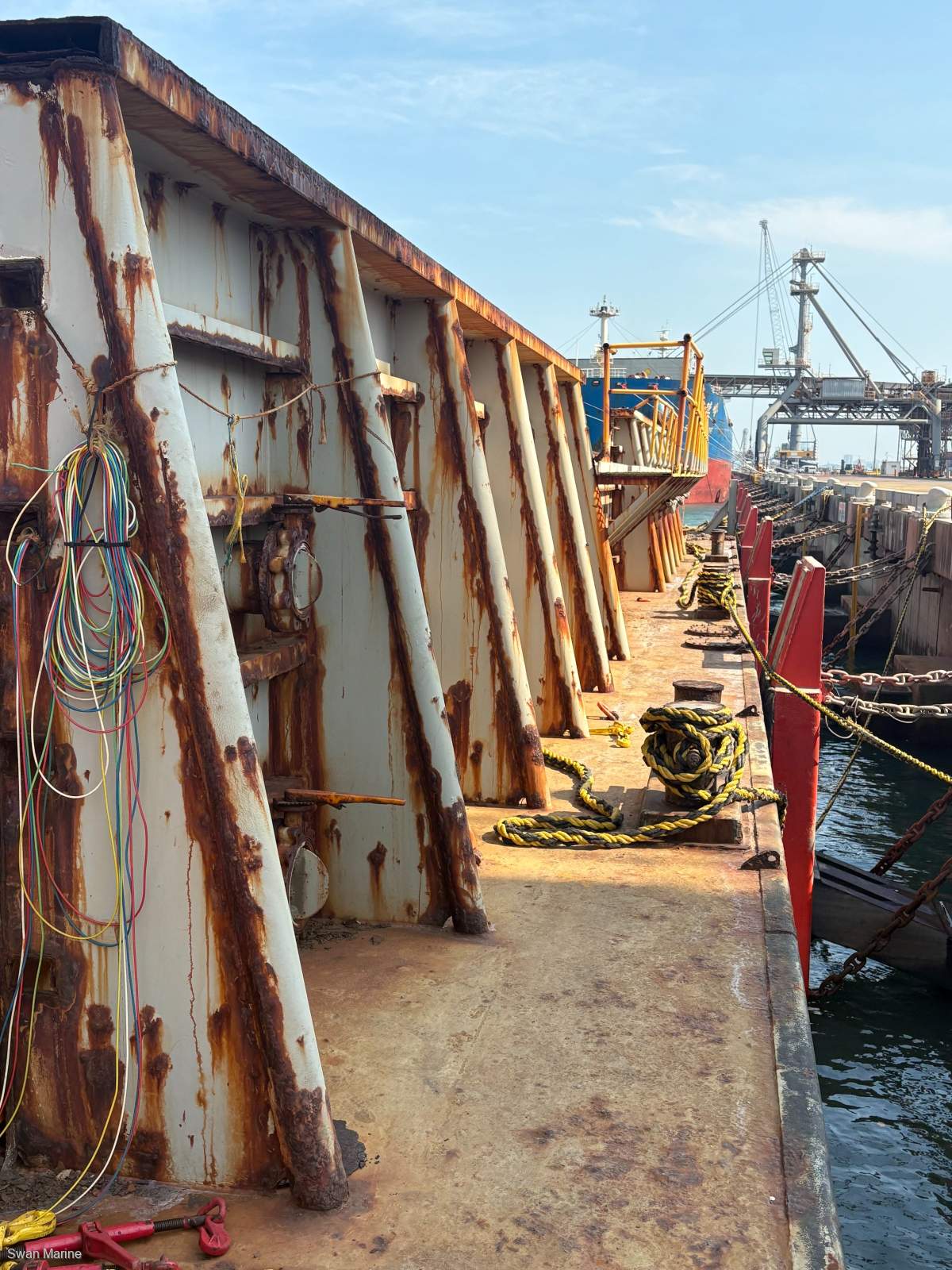

Sold as inspected, with current condition accepted and reflected in the asking price. The diesel hydraulic powerpack for the main loading door is a Neumann DHPU-36/45 with a CAT power unit and is in good condition with low hours. The door was installed by the current owners and is significantly younger than the barge itself. The barge has partial side-walls which have been left in place from a deconstructed tank(s). These walls provide useful barriers for loading and run roughly half the length of the barge from the centre.

Full spec sheet, detailed condition/off-hire report from December 2025 and survey documentation available on request.

Contact Mike at Swan Marine for further details or to arrange inspection. 0431936469 mike@swanmarine. Com. Au
